Base antenna for airband Sirio SPO-118-2

1 395 SEK

Reg. . You save (%)

Available

Temporary out of stock, soon in

Only a few left (5 items)

Temporary out of stock, soon in

Product reminder

Enter your e-mail address below and we will notify you when the product is available! Your e-mail address will be stored up to 180 days.

Product Description:

Wide band omnidirectional base station antenna suitable
for VHF AIR band service. The fiberglass protection radome and the anodized
aluminium parts guarantee robustness and long life to all the SPO-antennas

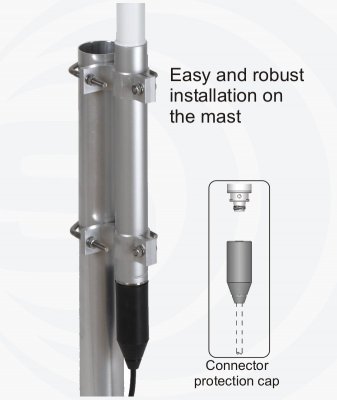

series. They are supplied with two strong extruded aluminium brackets and
stainless steel hardware for a good installation on the mast.

Type:1/2 λ
Radiation:Omnidirectional
Polarization:Linear vertical
Frequency range:TX band: 118-136 MHz @ SWR ≤1.5 No tuning required
RX band: 108-136 MHz
Systems:VHF Airband
Gain:0 dBd – 2.15 dBi
Max Power:100 W (CW)
Grounding protection:DC-Ground
Connector:N-female
Mechanical Data:
Materials:Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):1700 mm / 5.58 ft
Weight (approx):1400 gr / 3.09 lb
Mounting type:On-Mast 35-54mm
